Command Line Programming with Responder PRO

One little known feature of HBGary’s Responder product is that it ships with the full source code to a command-line version. This command-line version of the product can be customized for automated tools, batch processing, and statistical utilities. HBGary is still working to produce an 'official' documentation on the SDK, but in the meantime I figured I would walk the more adventurous of you through some code.

First you need Microsoft Visual Studio. I use VS2008 Pro Edition with version 3.5 SP1 of .NET. In the SDK subdirectory of your Responder installation, you should find the ITHC directory. Just a backstory, but ITHC means Inspector Test Harness Client – it was originally a test harness used by our QA team that eventually proved so useful for batch processing that we included it for customers. The code is written in C#.

When I first opened the .sln file on my Responder install, I found that the project file needed some tweaking. Your mileage may vary, but here are some steps I had to take. First, the references to all the Responder DLL’s were broken. By editing the .csproj file I was able to fix this. The trick is to use a HintPath variable with a relative path to the main install directory, which is two folders above the ITHC directory (see image). I’m not sure why it shipped this way, but alas I was able to fix it.


Fixing the references


Now, in most cases, I like programming in Debug mode so I can single step, use breakpoints, inspect variables, etc. I ran into a snag with my debug build and had to get one of the HBGary engineers to take a look. Again, it was a configuration thing. When you make build settings, the platform will probably be set to AnyCPU. You will need to set the platform target to x86 (see image). This has something to do with mixed mode code and if you don’t set this to x86 you will get a binding error when you attempt to run the ITHC exe. Lastly, I set my output path so the ITHC.exe ended up in the main Responder install directory (see image).


Setting the platform target

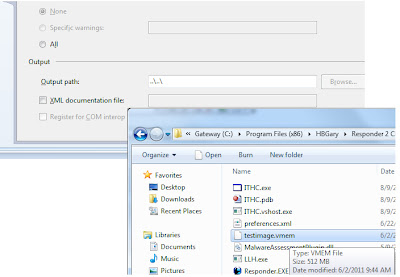

Setting the output path


Running the tool requires some precise command line arguments (see image). The project path needs to be as shown path/projectname/projectname.proj and the path to the memory image needs to be fully qualified. If you want to change any of that, you can edit the code in NewProject() and OpenProject() to parse the path differently. At this point I had a fully functional ITHC.exe that would analyze Windows physical memory snapshots.


Command line parameters to the tool


Most of the analysis magic happens in THCAnalyzeFile(). The project file ends with the .proj extension and this will be created or opened if it already exists. There is also a .tmp file that contains cached lookup data for Responder which only exists after an analysis. THCAnalyzeFile() will handle all of this.

At this point I need to explain packages and classes. In Responder, a package is any binary object. For example, the physical memory snapshot is a package. Every extracted livebin is also a package. If you import a file for static analysis, that file is considered a package.

Both packages and classes can have parent/child relationships. The difference is that a class is simply a container without any associated binary data. Think of it as just a folder. In fact, in the Responder GUI, classes are shown as folder icons. Just remember that packages can have child classes, classes can contain other classes, classes can contain packages – there is no restriction on the way you nest these objects.

Around line 249 in the ITHC example you will see the creation of the root package (see image). Every project has a single root package that everything else will reside under. Usually this package has no associated binary object and is simply a placeholder. We usually set this to the name of the forensic case – such as “Case 04321”. In Responder’s GUI, the root package is always shown with a safe icon. Depending on the project type, a class will be created directly under this root package. The name of this class is very important and affects the kinds of things Responder will let you do. So, for a physical memory analysis you need to name this first class "Physical Memory Snapshot". You will see this created around line 266.


root package, bulk update, named attributes


Now just a word on event management. Responder has a robust event alerting system that will post an event to your code whenever an object is modified. You could subscribe to these events and be notified if the user changed a property of an object anywhere in the GUI, for example. But, there is a flipside – if you make a large number of changes all at once you will flood the system with these messages. Most of the time if you are going to change a bunch of objects all at once, you want to disable events for a short time. To do this, you use the BeginBulkUpdate() and EndBulkUpdate() methods. You will see these in use around line 249 (see image).

Around this same section of code you will also see named attributes being set on the case. These attributes are being applied to the root package, the one that shows up as a safe icon when you view it in Responder’s GUI. Any object, including packages and classes, can have named attributes set. The attribute system is typed and the first letter of the name indicates the type. See my previous post on plugin development for a description of these.

Around line 293 you will see the creation of a second package. This package is the one associated with the physical memory snapshot. It is placed under the root node and folder. You will also see the creation of something called a snapshot that is then linked with the package. This is how you link a binary to the package – via the snapshot object. The snapshot is just a small header of metadata that is associated with the binary file – including the path to the file – and this is set as the “.InitialSnapshot” property of the package. After this step, the package and the binary are linked.


package and snapshot for the physical memory image


The most important function is then called – the AnalyzeMemory function (around line 329). This function performs the bulk of the memory analysis. It returns true or false depending on whether it understood the memory snapshot. Just a note; it will return false if you don’t have a valid license. If you have the free version of Responder CE, you still have a license file that must be present or this call will bail out on you.

After analysis is complete, the analysis history is updated to include “WPMA”. This tells Responder that “WPMA” analysis has already completed, so it won’t attempt a second analysis later. Note: WPMA means Windows Physical Memory Analysis. Responder has other analysis types that can be added to this history. You can also add your own for reference later.

Now that analysis is complete you can parse the datastore, query all the found windows objects, processes, modules, etc. You can also query the DDNA results if you are using the Pro version. Some object types, such as control flow, disassembly, dataflow, graph objects, and recon traces are only available in the Pro version. However, the results of the windows memory analysis are fully available in all versions, including the free CE version. See the THCDumpProject() function for more information on parsing the project’s object tree.


Package: ws2_32.dll
Parent Package: svchost.exe
Length: 0 bytes.
Class: Symbols
Class: Strings
Class: Report Items
Class: Global
Strings:
Package: vmwaretray.exe
Parent Package: VMwareTray.exe
Length: 0 bytes.
Class: Strings
Class: Global
Class: Report Items
Class: Symbols
Strings:
Package: msctf.dll
Parent Package: IEXPLORE.EXE
Length: 0 bytes.
Class: Strings
Class: Symbols
Class: Global
Class: Report Items


a short snippit of output from the THCDumpProject() function


For those of you using the Pro version, ITHC includes examples of not just physical memory analysis, but also extraction of livebins and code-level analysis of extracted livebins. If you made it this far, then take a look at AnalyzePackage(), AnalyzeExtractedPackage(), and ExtractPEImageFromMemory() to get more familier with the code level analysis features. I hope that I can write some more specific posts about these features in the near future.


ITHC.exe analyzing a memory snapshot


Because the ITHC utility is written in C# it’s very easy to interface to other systems. Microsoft has done a good job building a robust set of API’s that can be used for SQL database access, serializing files, communicating over the web or TCP/IP, regular expressions, etc. All of this is at your fingertips and can be interfaced with the results of physical memory assessments. I am partial to building bulk analysis tools for large directories of memory snapshots. You are only limited by your imagination.

The SDK directory should be in your Responder install directory. If you are using the free Community Edition you may not have the SDK directory. In this case you can download the SDK as a small but separate download from the free tools section on HBGary's support site. Visit www.hbgary.com for more information.
